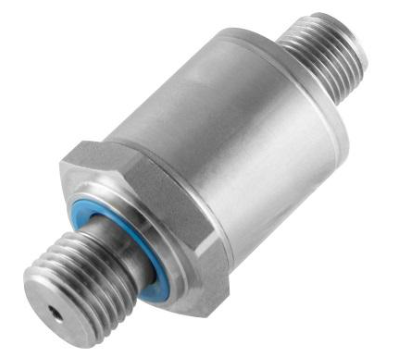

PTE7300-24AM-1B100SN壓力傳感器Sensata森薩塔

發布時間：2024-07-15 10:15:22 瀏覽：962

Electrical
Pressure Ranges	0-10 barto0-600 bar (0-145 psi to 0-8700psi
PressureReference	Gauge(Module)and Sealed Gauge [fully hermetic sensor
Supply Voltage	3.3VDC to 5.5VDC
Digital Interface	FC with CRC(memory integrity,and data transmission)
Device Address	0xDA (including CRC 0x6C(excluding CRC
Operating Current In Sleep Mode	6.5uA(typical)
Operating Current In Active Mode	3.7mA typical (4mAmaximum)
AvailableData	Pressure int16 Bridge temperature [int16]2 Status [int16 Device seria (int32)
Resolution	15 bit
Response Time	<1ms@Default setting and active mode
Probe Configurations	On-demand,single cycle
Recommended pull-up resistors	1kOhm to 10kOhm,depending on cable length
External Capacitive Load for I2C Bus Line	400 pF max\|depends onthe cable length
ESD	±4KV Contact;±8KV Air
Radiated Immunity	80-1000MHz10V/m 1400-2000MHz 3V/m 2000-2700MHz 1V/m
Conducted Immunity	0.15-80MHz3Vrms
Magnetic Immunity(1	3 A/m for 5 minutes
Physical
Proof Pressure	60bar forfull scale pressure=10-29bar 200barfor full scale pressure=30-100bar 500barfor full scale pressure=101-250bar 800barfor full scale pressure=251-400bar 1200bar for full scale pressure=401-600bar
Burst Pressure	200barfor full scale pressure=10-29bar 2000bar forfull scale pressure=30-100bar 2500bar forfull scale pressure=101-250bar 4000bar forfull scale pressure=251-600bar
Vibration	EC 60068-2-6with 2.0mm displacement,Sensor:30g(10..2000Hz);Module:20g(10..2000Hz)
Mechanical Shock	IEC 60068-2-27,50g min(Modulel;IEC 60068-2-27,500g min (fully hermetic sensor)
Drop (any Axis)	1m
Water Hammer	1.6X full scale pressure for 100k cycles,1.3xFS for200k cycles
Ingress Protection	IP00 (Module),IP69K(fullyhermeticsensor
Media Compatibility	Fluids and Gases compatible with 17-4PH stainless steel
Performance
Pressure(Best Fit Straight)3	±0.25%FS@25℃
Pressure(Total Error Band)0	+/-1.5%FS@-20°to 85°℃
Operating Endurance	>10M cycles
0perating Ambient Temperature	40°to+100℃
Operating Media Temperature	40°to+125℃
Storage Temperature	40°to+125℃

Sensata森薩塔成立于1916年，專注于提供傳感器、控制器產品和服務，產品廣泛應用于交通運輸、樓宇暖風空調控制、工業、能源以及航天航空等領域。深圳市立維創展科技有限公司優勢渠道提供Sensata傳感器產品，歡迎咨詢。
